TEYUN Briquetting Machine Equipment Structure

tHE FEATURES OF THE BRIQUETTING MACHINE

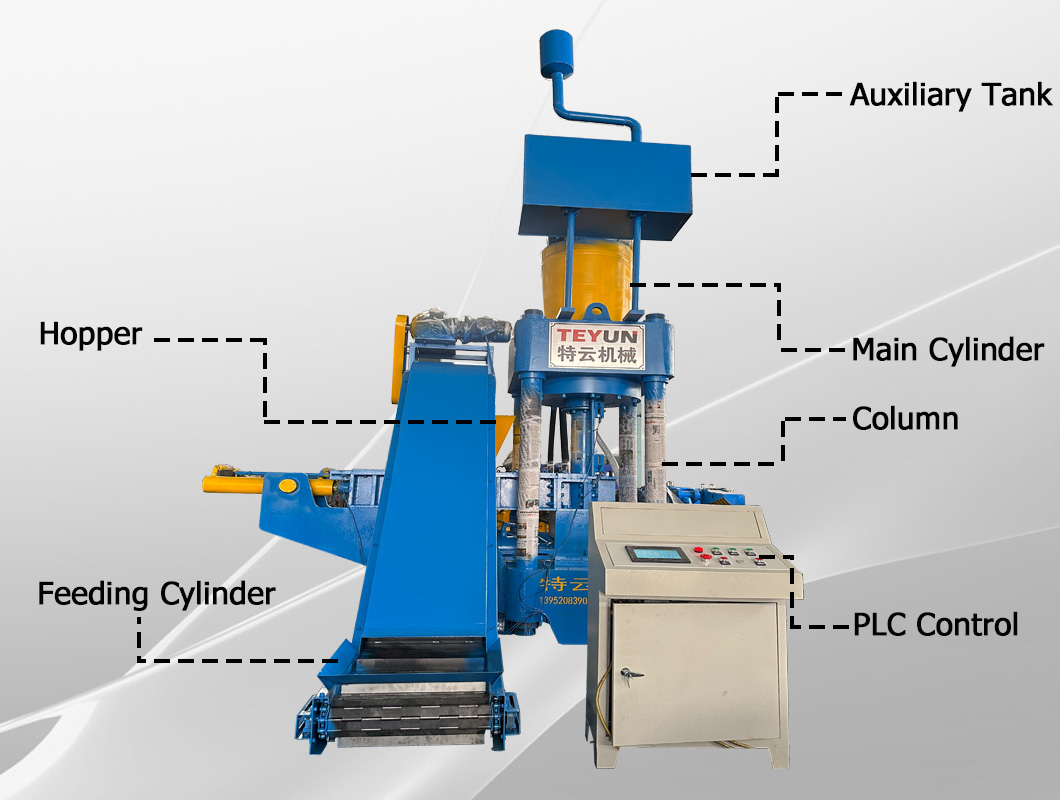

THE STRECTURES OF A METAL CHIPS/ POWDER BRIQUETTING MACHINE

1.Main machine

Briquetting machine is composed of a frame, a main hydraulic cylinder, a propulsion hydraulic cylinder, a bottom hydraulic cylinder, a matching mold frame, a pressure head, etc.

The frame is composed of upper and lower beams and columns. The upper and lower beams are all cast steel parts. The upper and lower beams are connected to the four columns through internal and external nuts to withstand the tension during the working process.

The main hydraulic cylinder eliminates cast steel parts, eliminates safety hazards, and ensures the service life and safety of the equipment. The matching mold frame, mold, pressure head, etc. are high-strength wear-resistant steel, which can be quickly replaced. The front end of the mold is equipped with a wear-resistant punch, which is convenient for disassembly and installation, extending the service life. The relevant parts have been specially hardened or forged at the necessary position.

2.Hydraulic station

Metal scrap briquetting press is composed of a motor, a hydraulic station, a pump protection device, a professional control valve group and a pipeline system connecting the cake press. It has a reasonable design, stable quality, and is equipped with a cooling system to prevent the equipment from working continuously due to overheating of the oil temperature.

3.E-box

Aluminum hydraulic briquette machine is composed of an electrical system and a PLC control system, equipped with an adjustable text display, and the action sequence and each action time are completely controlled by the PLC system. It can be adjusted by the operator at any time, which is convenient, fast and easy to understand.
