Brand:
TeyunWarranty:
1 yearCertification:
CEOperation type:
Manual/ AutomaticVoltage and frequency:
380/50HZApplication:
For baling the scrap metal1000ton heavy duty hydraulic scrap metal baler
For the balers we have many types: the scrap metal baler, the vertical baler and the horizontal baler.
The hydraulic scrap metal baler (also called as the scrap metal baling machine) is a machine used to compress or crush different types of metal scraps into a compact and manageable form. It is a significant tool in the recycling industry, as it helps to reduce the volume of waste metal materials, thus making it easier to store, transport, and recycle. Teyun is the direct manufacturer of the hydraulic scrap metal baler for many years and has sold the balers to many countries.
Features of the hydraulic scrap metal baler
1. High compressive force: A hydrulic scrap metal baler carries a high compressive force that can compact large metal volumes into small and manageable sizes.
2. Easy operation: It is easy to operate, and the entire process takes a short time to complete.
3. Safety features: It comes with various safety features, including emergency stop buttons and sensors that prevent any unexpected accidents.
4. Different sizes and models: There are different sizes and models available to accommodate various types of metal scrap and operation requirements.
5. Durability: A scrap metal baler is built with sturdy materials that are designed to withstand the harsh working conditions of the recycling industry.
6. Low maintenance: Maintenance is usually minimal, reducing the cost of operation.
7. Environmental friendly: It promotes a cleaner and healthier environment by reducing the amount of waste metal materials that are in circulation.

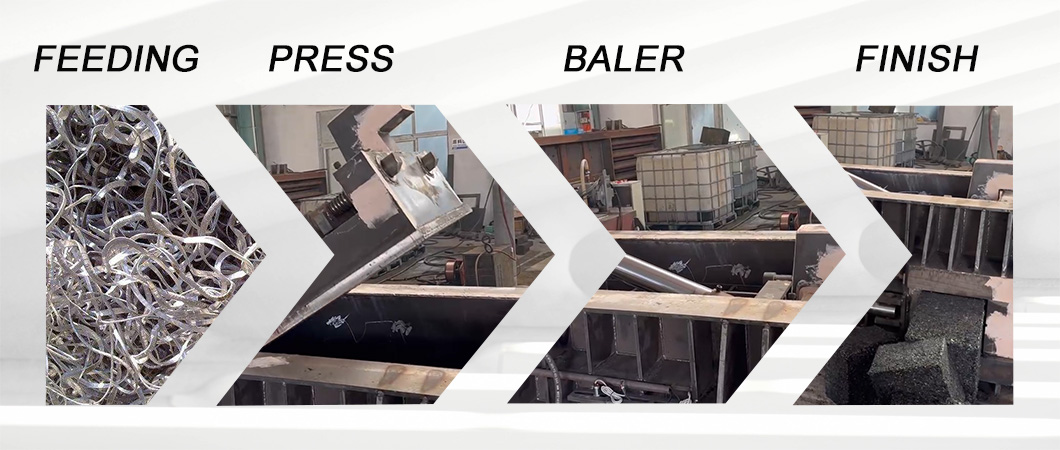

Working process of the hydrulic scrap metal baler

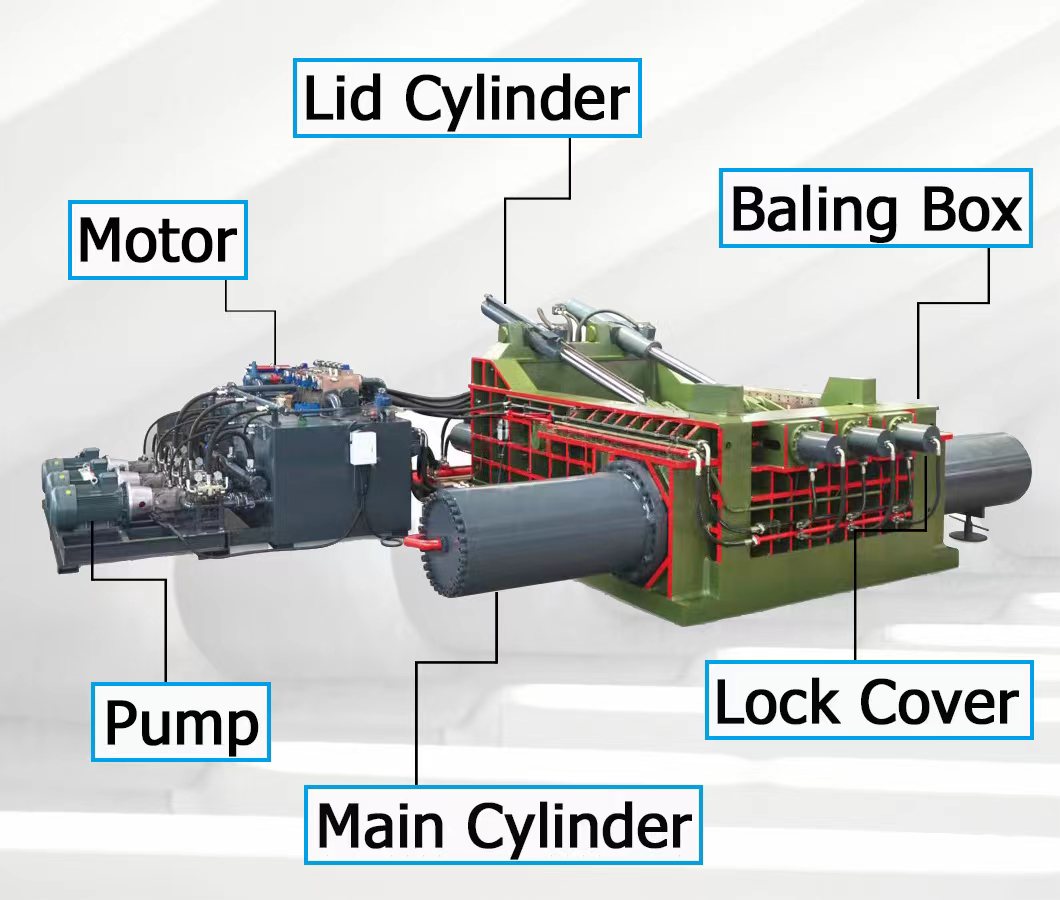

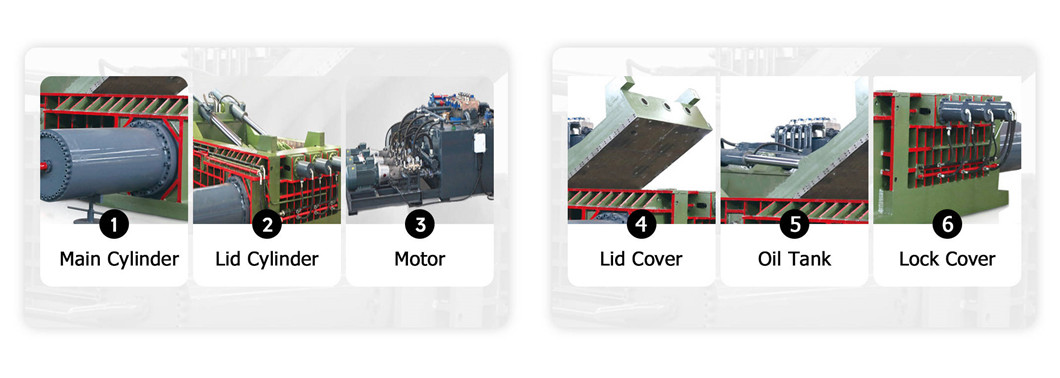

Details of the hydraulic scrap metal baler
Model | Max Cyli Force(ton) | Press Box Size (mm) | Bale Size(W*H/mm) | Power(kw) | Remarks |
TY81F-125 | 125 | 1200*700*600 | 300*300 | 15 |
Manual/
Automatic
|
TY81F-125 | 125 | 1400*800*700 | 300*300 | 22 | |
TY81F-160 | 160 | 1600*1000*800 | 400*400 | 22 | |
TY81F-160 | 160 | 1600*1200*800 | 400*400 | 2*15 | |
TY81F-200 | 200 | 1600*1200*800 | 400*400 | 2*18.5 | |
TY81F-200 | 200 | 1600*1400*900 | 400*400 | 2*18.5 | |
TY81F-250 | 250 | 2000*1400*900 | 500*500 | 2*22 | |
TY81F-250 | 250 | 2000*1750*1000 | 500*500 | 2*22 | |
TY81T-250 | 250 | 2500*2000*1200 | 500*500/600*600 | 2*22 | |
TY81F-315 | 315 | 3000*2500*1200 | 600*600 | 2*45 | |
TY81T-315 | 315 | 2500*3000*1300 | 600*600/700*700 | 2*45/3*45 | |
TY81T-400 | 400 | 3500*3000*1300 | 700*700 | 3*45 | |
TY81T-500 | 500 | 3500*3000*1500 | 700*700 | 3*45 | |
TY81T-630 | 630 | 3500*3000*1500 | 700*700 | 4*45 | |
TY81T-1000 | 1000 | 3500*3000*1500 | 700*700 | 6*45 | |
TY81T-1250 | 1000 | 3500*3000*1500 | 700*700 | 8*45 | |
TY81Q-135 | 135 | 1300*600*600 | 600*240 | 22 | |
TY81Q-200 | 500 | 1400*700*600 | 700*280 | 22+15 | |
TY81-150Y | 150 | 800*550*500 | 135*500 | 18.5 |
